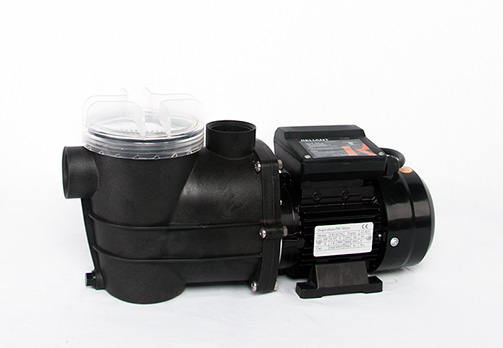

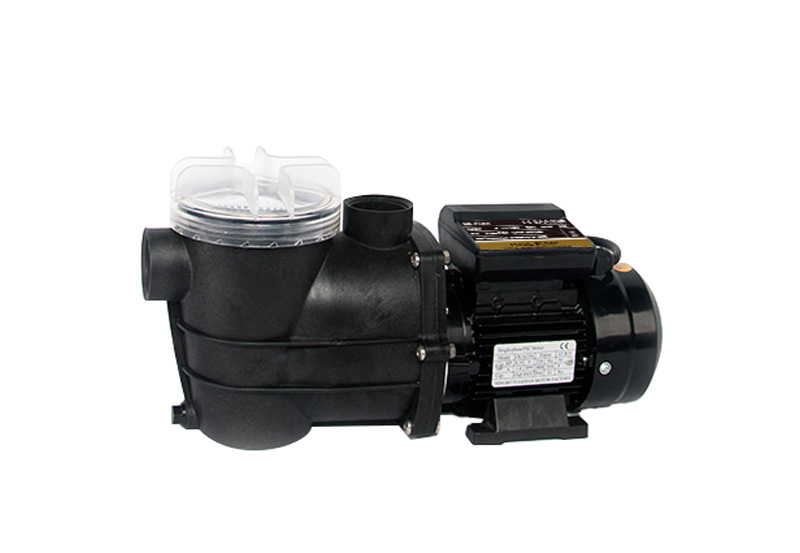

PF Plus Series

PF Plus Series has the additional pre-filter and transparent lid for easy maintenance, which is based on the PF Series. It is suitable for all small above ground pools.

Impeller is made of high strength engineering grade plastic for extra durability.
Mechanical seals are engineered for long life and quiet operation.
Poles of asynchronous motor and varnished stator are designed and engineered to provide long life.
Motor is equipped with thermal protection to prevent overheating, increase safety, and to improve reliability.
Waterproof grade: IPX5, 100% drip proof.
All electrical insulation for motor wires is F grade.
Transparent strainer lid can be removed easily for inspecting and cleaning.
Drain plug for easy pump winterization and maintenance.
All pumps are designed and manufactured to meet all ETL agency requirements.
Optional ABS fittings for easy installation and servicing.

Specification for Europe Market

Single Speed Pumps

Model Number	Input Power	Voltage	Hertz	Amps	Pipe Size	Dimension "L"	Weight (Kg)	Carton Dimension (cm)
P7102	250W	220~240	50	1	1 1/2"	240mm	5.1	45 x 17 x 26
P7103	400W	220~240	50	1.8	1 1/2"	240mm	6.12	45 x 17 x 26

Specification for North America Market

Single Speed Pumps

Model Number	H.P.	Voltage	Hertz	Amps	Pipe Size	Dimension "L"	Weight (lbs)	Carton Dimension (inch)
P1102	0.25	115	60	2.2	1 1/2"	9.5"	11.9	17.7 x 6.7 x 10.2
P1103	0.35	115	60	3.8	1 1/2"	9.5"	13.8	17.7 x 6.7 x 10.2

Curve for European Market

Single Speed Pumps

Curve for North American Market

Single Speed Pumps
