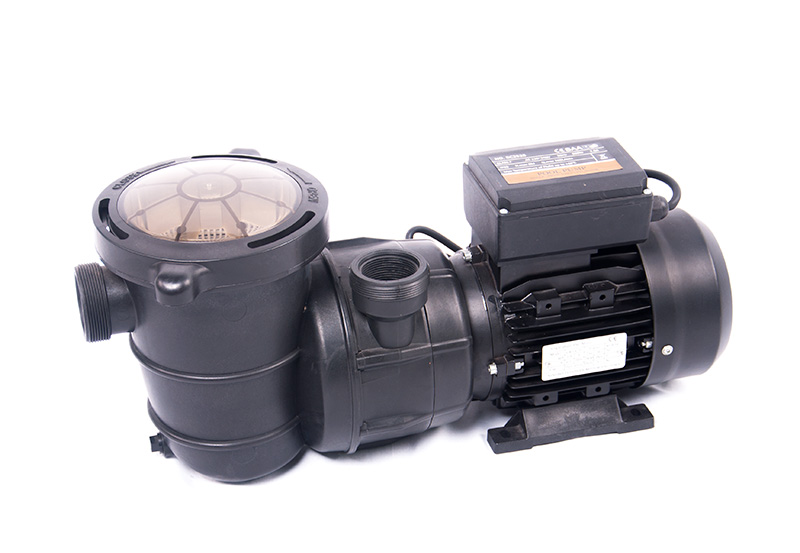

PF Pro Series has a high performance energy efficient motor, comparable to the PF Plus Series. The PF Pro Series is suitable for all above ground pools.
2 Speed Pumps are now listed in the ENERGY STAR
● Single and dual-speed models are available for selection.
● Dual-speed models (P7215DC) with 24 clock timer controller is convenience for setting high speed running time and low speed running time for a daily cycle.
● Dual-speed models can save around 70% energy cost compared to single speed models.
● All components are made of corrosion resistant materials for extra durability and long life.
● Impeller is made of high strength engineering grade plastic for extra durability.
● Poles of asynchronous motor and varnished stator are designed and engineered to provide long life.
● Motor is equipped with thermal protection to prevent overheating, increase safety, and to improve reliability.
● Waterproof grade: IPX5, 100% drip proof.
● All electrical insulation for motor wires are F grade.
● Optional PVC unions or ABS fittings for easy installation and servicing.
Specification for Europe Market
Single Speed Pumps
| Model Number |
Input Power |
Voltage |
Hertz |
Amps |
Pipe Size |
Dimension "L"(mm) |
Dimension "A"(mm) |
Weight (Kg) |
Carton
Dimension (cm) |
| P7205 |
550W |
220~240 |
50 |
2.5 |
1 1/2" |
272 |
102 |
8.8 |
59 x 21 x 29.5 |
| P7207 |
600W |
220~240 |
50 |
2.6 |
1 1/2" |
272 |
102 |
10 |
59 x 21 x 29.5 |
| P7210 |
1000W |
220~240 |
50 |
4.5 |
1 1/2" |
307 |
122 |
12 |
58.5 x 21 x 32 |
| P7215 |
1100W |
220~240 |
50 |
5 |
1 1/2" |
307 |
122 |
13.7 |
58.5 x 21 x 32 |
Dual Speed Pumps
| Model Number |
Input Power |
Voltage |
Hertz |
Amps |
Pipe Size |
Dimension "L"(mm) |
Dimension "A"(mm) |
Weight (Kg) |
Carton
Dimension (cm) |
| P7215DC |
1100W |
220~240 |
50 |
4.7/1.9 |
1 1/2" |
307 |
122 |
13.1 |
60.5 x 19.6 x 32 |
Specification for North America Market
Single Speed Pumps
| Model Number |
H.P. |
Voltage |
Hertz |
Amps |
Pipe Size |
Dimension "L" |
Weight (lbs) |
Carton
Dimension (inch) |
| P1207 |
0.75* |
115 |
60 |
6.2 |
1 1/2" |
11.52" |
21.6 |
23 x 8.5 x 10.4 |
| P1210 |
1.0* |
115 |
60 |
9 |
1 1/2" |
11.80" |
23.6 |
23 x 8.5 x 10.4 |
| P1215 |
1.5* |
115 |
60 |
10 |
1 1/2" |
12.00" |
25.1 |
23 x 8.5 x 10.4 |
Dual Speed Pumps
| Model Number |
H.P. |
Voltage |
Hertz |
Amps |
Pipe Size |
Dimension "L" |
Weight (lbs) |
Carton
Dimension (inch) |
| P1210D |
1/0.41* |
115 |
60 |
10/3.2 |
1 1/2" |
11.8" |
23.6 |
23 x 8.5 x 10.4 |
| P1210DC |
1/0.41* |
115 |
60 |
10/3.2 |
1 1/2" |
11.9" |
21.8 |
23 x 8.5 x 10.4 |
| P1215D |
1/0.41* |
115 |
60 |
6.2 |
1 1/2" |
11.52" |
21.6 |
23 x 8.5 x 10.4 |
| P1215DC |
1.5/0.46* |
115 |
60 |
12/3.6 |
1 1/2" |
12" |
25.1 |
23 x 8.5 x 10.4 |
Dimension for Europe Market
Dimension for North American Market
Single Speed Pumps Dual-speed Pumps
Curves for Europe Market
Single Speed Pump
Dual Speed Pump
Curves for North American Market
Single Speed Pump
Dual-speed Pump
