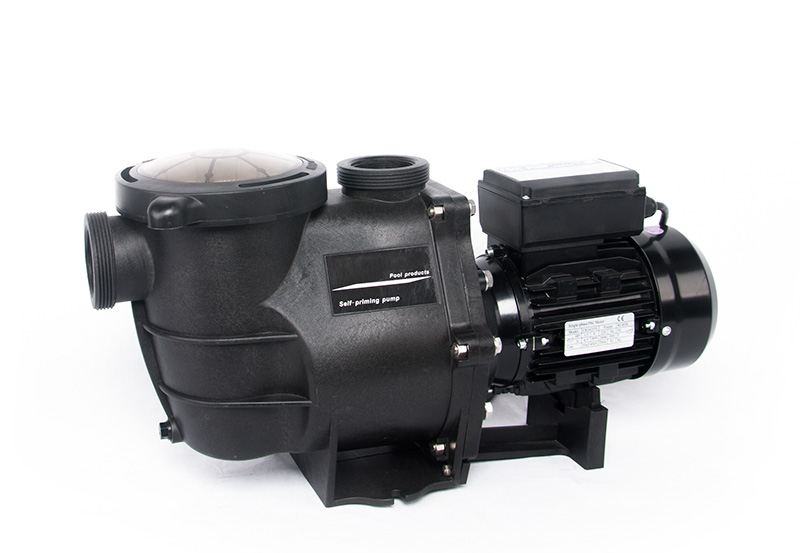

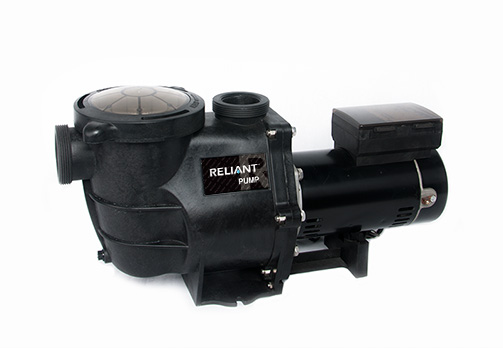

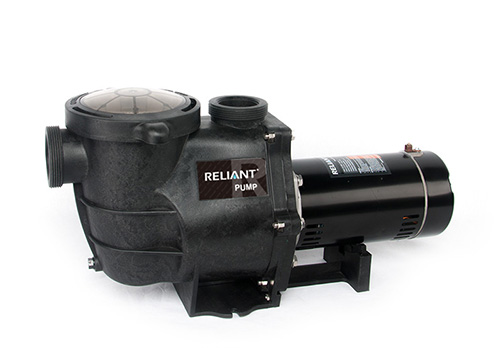

SF Pro Series is a self-priming pump. It provides ultra-performance with a larger impeller and heavy-duty motor. The SF Pro Series is suitable for in ground swimming pools, medium and large size above ground pools.
- Pump is designed with high flow rate for faster turnover.
- All components are made of corrosion resistant materials for extra durability and long life.
- Impeller is made of high strength engineering grade plastic for extra durability.
- Mechanical seals are engineered for long life and quiet operation.
- Poles of asynchronous motor and varnished stator are designed and engineered to provide long life.
- Motor is equipped with thermal protection to prevent overheating, increase safety, and to improve reliability.
- Waterproof grade: IPX5, 100% drip proof.
- All electrical insulation for motor wires is F grade.
- Transparent strainer lid can be removed easily for inspecting and cleaning.
- Drain plug for easy pump winterization and maintenance.
- All pumps are designed and manufactured to meet all CSA and ETL agency requirements.
- Optional PVC unions for easy installation and servicing.
Specification for Europe Market
Single Speed Pumps
| Model Number |
Input Power |
Voltage |
Hertz |
Amps |
Pipe Size |
Dimension "L" |
Weight (Kg) |
Carton
Dimension (cm) |
| P6110 |
950 |
220~240 |
50 |
3.5 |
1 1/2" |
281mm |
10.6 |
67.5 x 26.5 x 36.5 |
| P6015 |
1450W |
220~240 |
50 |
6.4 |
1 1/2" |
316mm |
14.3 |
67.5 x 26.5 x 36.5 |
Dual Speed Pumps
| Model Number |
Input Power |
Voltage |
Hertz |
Amps |
Pipe Size |
Dimension "L"(mm) |
Weight (Kg) |
Carton
Dimension (cm) |
| P6115DC |
1450W |
220~240 |
50 |
5.7/2.0 |
2" |
331 |
16.1 |
71 x 25.5 x 38.5 |
Specification for North America Market
Single Speed Pumps
| Model Number |
H.P. |
Voltage |
Hertz |
Amps |
Pipe Size |
Dimension "L" |
Weight (lbs) |
Carton
Dimension (inch) |
| P2110 |
1.0 |
115/230 |
60 |
10/5 |
2" |
14.17" |
32 |
26.6 x 10.4 x 14.4 |
| P2115 |
1.5 |
115/230 |
60 |
15/7.55 |
2" |
14.57" |
35 |
27.6 x 10.4 x 14.4 |
Dual Speed Pumps
| Model Number |
H.P. |
Voltage |
Hertz |
Amps |
Pipe Size |
Dimension "L" |
Weight (lbs) |
Carton
Dimension (inch) |
| P2110D |
1.0/0.21 |
115 |
60 |
12/3.6 |
2" |
14.17" |
32 |
26.6 x 10.4 x 14.4 |
| P2115D |
1.5/0.26 |
230 |
60 |
7.5/2.1 |
2" |
14.57" |
35.7 |
27.6 x 10 x 15.2 |
| P2110DC |
1.0/0.21 |
115 |
60 |
12/3.6 |
2" |
14.6" |
28 |
26.6 x 10 x 15.2 |
| P2115DC |
1.5/0.26 |
230 |
60 |
7.5/2.1 |
2" |
15" |
33 |
27.6 x 10 x 15.2 |
Dimensions for Europe Market
Dimensions for North America Market
Curve for European Market
Single Speed Pumps
Dual Speed Pumps
Curve for North America Market
Single Speed Pumps
Dual Speed Pumps
