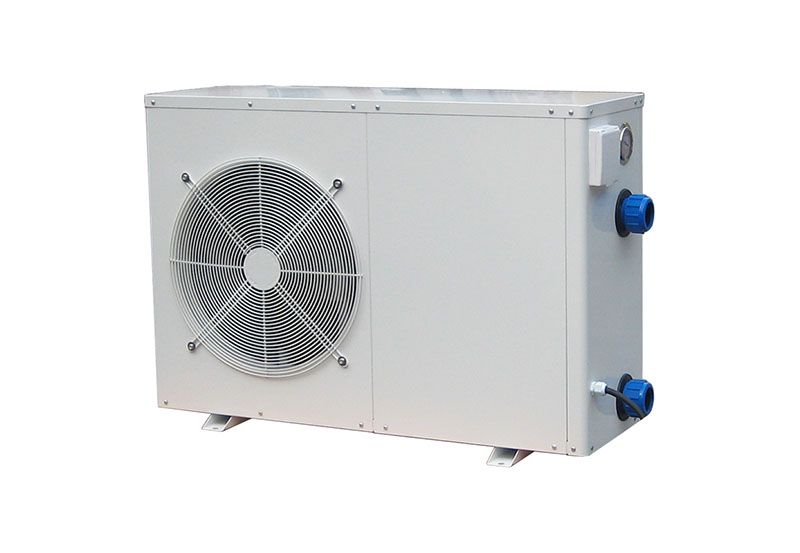

All Season Series

Zoom in
Select Model
  • BP-35HS-A
  • BP-50HS-A
  • BP-85HS-A
  • BP-100HS-A
  • BP-130HS-A
  • BP-160HS-A
  • BP-210HS-A
  • Overview
  • Specifications
  • Dimensions
  • Curves
  • Definitions
  • Parts Diagrams
  • Brochures
  • High & Low Pressure Sensors – This is one of the important protection mechanisms for our heat pumps.  When the refrigerant pressure inside machine is too high or too low, these sensors will detect and shot down the heat pump immediately, to prevent the compressor from damage.
  • Self-Diagnosis Function - With our pre-programmed self-diagnosis function, together with our different protection sensors, errors will be detected by micro-computer chip, and display corresponding error code on the control panel.  End user can easily determine the root of problem and correct procedure can be taken to put machine back to normal operation.
  • Auto-defrosting - With auto defrosting function.  When the environmental temperature is too low, our machine will automatically start defrosting function, to ensure the optimal heat pump operations.
Models Unit (kg) BP-35HS-A BP-50HS-A BP-85HS-A BP-100HS-A BP-130HS-A BP-160HS-A BP-210HS-A BP-250HS-A
Heating Capacity A24/W27 kW 3.7 5.4 8.5 10.5 13 17 21 26
COP A24/w27 W/W 5.3 5.1 5 5.1 5 5 5 5
Heating Capacity A15/w27 kW 2.8 4.1 6.6 8 10.1 13.4 16.5 21
COP A15/27W W/W 4.6 4.5 4.4 4.5 4.5 4.5 4.4 4.6
Cooling Capacity kW 2.5 4 6 7.2 9.2 12 15 18.5
EER(A32/W27) W/W 3.5 3.5 3.5 3.5 3.5 3.5 3.5 3.5
Power Input kW 0.7 1 1.7 2.05 2.6 3.4 4.2 3.2
Current A 3.6 5 7.8 9.5 12 16 7 8
Power Supply V/P/Hz 220/1/50 220/1/50 220/1/50 220/1/50 220/1/50 220/1/50 380/3/50 380/3/50
Compressor Qty   1 1 1 1 1 1 1 1
Compressor Style   Rotary Rotary Rotary Rotary Rotary Scroll Scroll Scroll
Compressor Brand   Japanese
Heating Exchanger   Titanium in PVC
Water Connection mm 50 50 50 50 50 50 50 50
Fan quantity   1 1 1 1 1 1 1 2
Fan Rotate Speed RPM 830 830 830 850 850 850 850 850
Fan Direction   Horizontal Horizontal Horizontal Horizontal Horizontal Horizontal Horizontal Horizontal
Noise dB(A) 48 49 50 52 53 55 57 60
Water Flow Volume m3/h 3 3.5 5 5.5 6.5 7.5 9 10
Net Unit Size (L/W/H) mm 755x270x480 940x270x540 940x270x540 1000x305x580 1070x335x700 1120x430x790 1190x430x980 1120x430x1250
Carton Size (L/W/H) mm 830x340x550 1070x400x575 1070x400x575 1140x405x640 1200x430x740 1200x500x840 1310x505x1040 1200x500x1280
Net/Gross Weight kg 34/38 45/49 54/58 65/69 76/81 114/124 131/144 140/154
