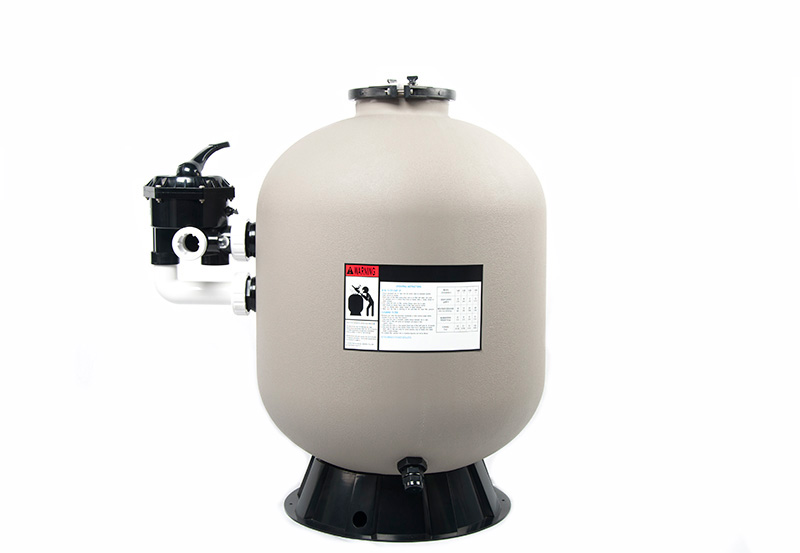

AS Series

Zoom in
Select Model
  • S116S
  • S119
  • S124S
  • Overview
  • Specifications
  • Dimensions
  • Curves
  • Definitions
  • Parts Diagrams
  • Brochures
  • The filter tank is constructed from HDPE plastic material for durability and long life
  • Top diffuser ensures even distribution of water over the top of the sand media bed.  All internal piping is 1.5” (Dia:50mm) to provide smooth, free-flowing performance
  • Flange clamp design allows 360 degree rotation for easy installation
  • Bottom drain plug for easy winterization or maintenance
  • Includes 7 position multi-port valve
Model Number Filter Diameter Filter Area m2(ft2) Port Size Design Flow Rate m3/h(gpm) Maximum WorkingPressure bar(PSI) Media Requires Kg(lbs) Weight Kg(lbs) Carton Dimension cm/inch
S116S 16" 0.125(1.35) 1 1/2" 7.9(35) 3.5(50) 45(100) 8.4(18.5) 42x42x82/17x17x32
S119S 19" 0.195(2.1) 1 1/2" 9(40) 3.5(50) 79(175) 11.2(24.7) 49x49x90/19x19x35
S124S 24" 0.28(3.04) 1 1/2" 11.3(50) 3.5(50) 136(300) 17(37.5) 60x60x103/24x24x41
Model Number A(mm/inch) B(mm/inch) C(mm/inch) D(mm/inch) E(mm/inch) F(mm/inch) G(mm/inch)
S116S 590/23.2 450/17.7 390/15.4 406/16 400/15.8 580/22.8 676/26.6
S119S 700/27.6 515/20.3 455/17.9 485/19 480/18.9 650/25.6 755/29.72
S124S 890/35.4 610/24 550/21.7 610/24 480/18.9 750/29.5 880/34.65
