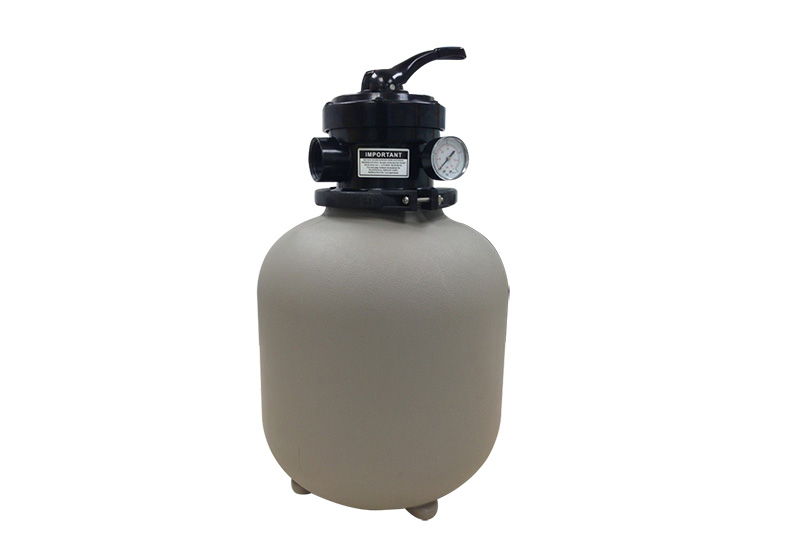

AT-mini Sereis

Zoom in
Select Model
  • S314T
  • Overview
  • Specifications
  • Dimensions
  • Curves
  • Definitions
  • Parts Diagrams
  • Brochures
  • The filter tank is made of HDPE plastic material for durability and long life.
  • Top diffuser ensures even distribution of water over the top of the sand media bed. All internal piping is 1.5” (Dia: 50mm) to provide smooth, free flowing performance.
  • Flange clamp allows 360 degree rotation for easy installation.
  • Bottom drain plug for easy winterization and maintenance.
Model Number Filter Diameter Filter Area m2(ft2) Pipe Size Design Flow Rate m3/h(gpm) Maximum WorkingPressure bar(PSI) Media Requires Kg(lbs) Weight Kg(lbs)

Carton Dimension cm/inch

S314T 14" 0.096(1.03) 1 1/2" 7(30.8) 3.5(50) 55(25) 4(8.8) 37x37x65/15x15x26
