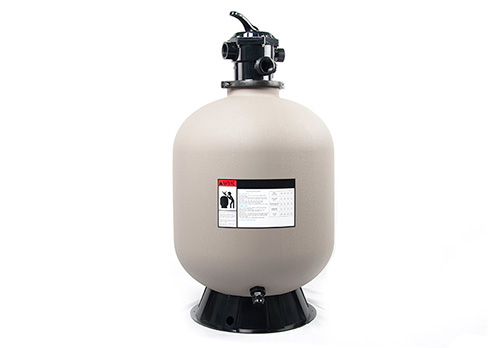

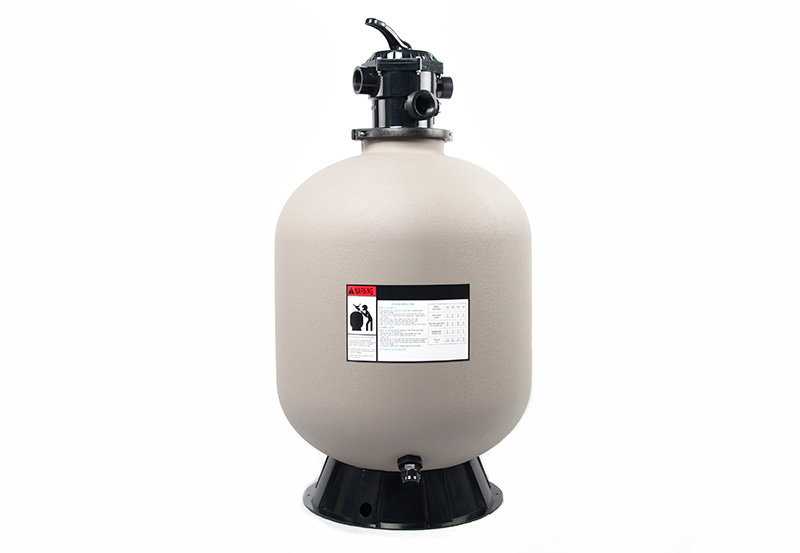

AT Series

Zoom in
Select Model
  • S116T
  • S119T
  • S122T
  • S124T
  • Overview
  • Specifications
  • Dimensions
  • Curves
  • Definitions
  • Parts Diagrams
  • Brochures

● The filter tank is constructed from HDPE plastic material for durability and long life.
● Factory pressure tested at 3.5bar (350kpa).
● Top diffuser ensures even distribution of water over the top of the sand media bed. All internal piping is 1.5” (Dia:50mm) to provide smooth, free-flowing performance.
● Flange clamp design allows 360 degree rotation for easy installation.
● Bottom drain plug for easy winterization or maintenance
● Includes 7 position multi-port valve



Model Number Filter Diameter Filter Area m2(ft2) Pipe Size Design Flow Rate m3/h(gpm) Maximum WorkingPressure bar(PSI) Media Requires Kg(lbs) Weight Kg(lbs) Carton Dimension (cm)
S116T 16" 0.125(1.35) 1 1/2" 7.9/35 3.5(50) 45(100) 7.5(16.5) 42 x 42 x 82
S119T 19" 0.195(2.1) 1 1/2" 9/40 3.5(50) 79(175) 9.7(21.4) 49 x 49 x 90
S122T 22" 0.25(2.69) 1 1/2" 10/45 3.5(50) 115(250) 14.6(32.2) 58 x 58 x 97
S124T 24" 0.28(3.04) 1 1/2" 11.3/50 3.5(50) 136(300) 16.5(36.4) 60 x 60 x 103
Model Number A(mm/inch) B(mm/inch) C(mm/inch) D(mm/inch) E(mm/inch)
S116T 810/31.89 685/26.97 625/24.6 406/16 100/15.75
S119T 930/36.61 805/31.69 745/29.33 485/19 480/18.89
S122T 975/38.4 985/38.8 790/31 550/22 480/18.89
S124T 930/36.61 805/31.69 745/29.33 485/19 480/18.89
