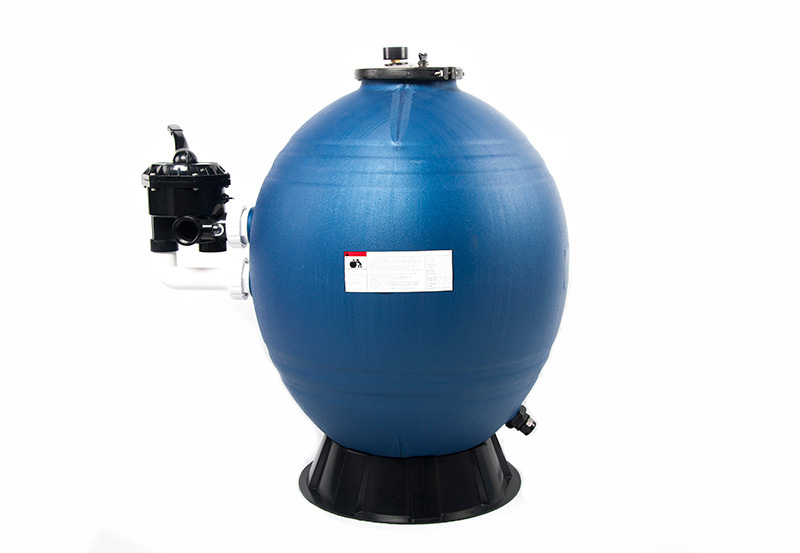

BS Series

Zoom in
Select Model
  • S218S
  • S222S
  • S226S
  • Overview
  • Specifications
  • Dimensions
  • Curves
  • Definitions
  • Parts Diagrams
  • Brochures
  • The filter tank is constructed from HDPE plastic material for durability and long life
  • BS Series sand filters combine modern design, filter capacity and features with durability and easy operation
  • Top diffuser ensures even distribution of water over the top of the sand media bed.  All internal piping is 1.5” (Dia:50mm) to give smooth, free-flowing performance
  • Flange clamp design allows 360 degree rotation for easy installation
  • Bottom drain plug for easy winterization or maintenance
  • Includes 7 position multi-port valve
Model Number Filter Diameter Filter Area m2(ft2) Port Size Design Flow Rate m3/h(gpm) Maximum WorkingPressure bar(PSI) Media Requires Kg(lbs) Weight Kg(lbs) Carton Dimension cm/inch
S218S 18" 0.167(1.8) 1 1/2" 9(40) 3.5(50) 50(110) 8.8(19.4) 48x48x85/19x19x33
S222S 22" 0.232(2.5) 1 1/2" 10(45) 3.5(50) 100(220) 11.8(26) 57x57x99/22x22x39
S226S 26" 0.334(3.6) 1 1/2" 12(53) 3.5(50) 160(360) 16(35.3) 67x67x102/26x26x40
Model Number A(mm/inch) B(mm/inch) C(mm/inch) D(mm/inch) E(mm/inch) F(mm/inch) G(mm/inch)
S218S 625/24.6 450/17.7 390/15.4 460/18 400/15.8 575/22.6 730/28.7
S222S 750/29.5 520/20.5 460/18.1 560/22 480/18.9 650/25.6 830/32.7
S226S 890/35 610/24 550/21.7 660/26 480/18.9 750/29.5 920/36.6
