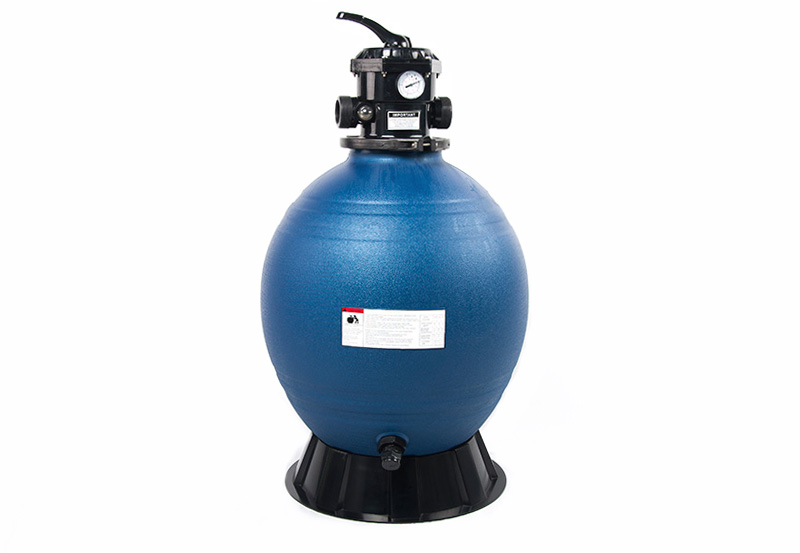

BT Series

Zoom in
Select Model
  • S218T
  • S222T
  • S226T
  • Overview
  • Specifications
  • Dimensions
  • Curves
  • Definitions
  • Parts Diagrams
  • Brochures

●  The filter tank is constructed from HDPE plastic material for durability and long life.
●  BT Series sand filters combine modern  design, filter capacity and features with durability and easy operation.
●  Factory pressure tested at 3.5bar (350kpa)
●  Top diffuser ensures even distribution of water over the top of the sand media bed.  All internal piping is 1.5”(Dia:50mm) to give smooth, free-flowing performance.
●  Flange clamp design allows 360 degree rotation for easy installation.
●  Bottom drain plug for easy winterization or maintenance
●  Includes 7 position multi-port valve

Model Number Filter Diameter Filter Area m2(ft2) Port Size Design Flow Rate m3/h(gpm) Maximum WorkingPressure bar(PSI) Media Requires Kg(lbs) Weight Kg(lbs) Carton Dimension (cm/inch)
S218T 18" 0.167(1.8) 1 1/2" 9/40 3.5(50) 50(110) 7.5(16.5) 48x48x85/19x19x33
S222T 22" 0.232(2.5) 1 1/2" 10/45 3.5(50) 100(220) 10.5(23.1) 57x57x99/22x22x39
S226T 26" 0.334(3.6) 1 1/2" 12/53 3.5(50) 160(360) 14.5(323) 67x67x112/26x26x41
Model Number A(mm/inch) B(mm/inch) C(mm/inch) D(mm/inch) E(mm/inch)
S218T 835/32.87 710/27.95 650/25.59 460/18 400/15.75
S222T 968/38.11 843/33.18 783/30.82 560/22 480/18.89
226T 1120/44.09 990/38.97 920/36.22 660/26 480/18.89
