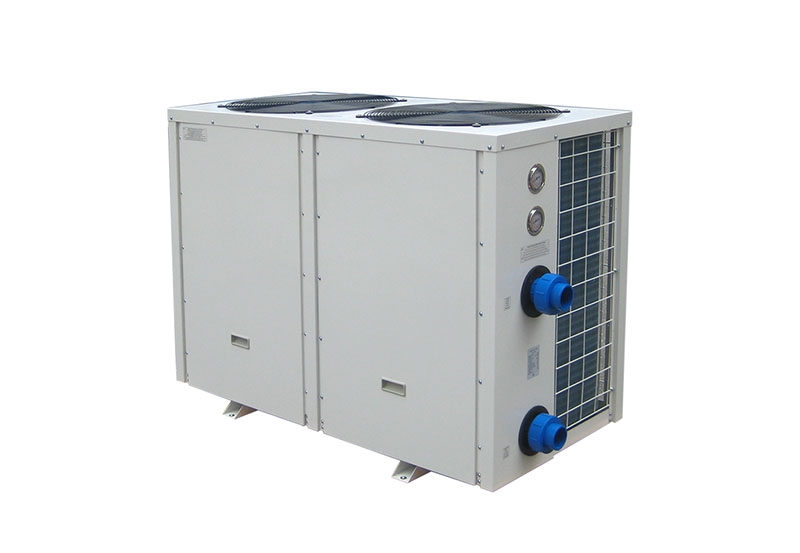

Commercial Series

Zoom in
Select Model
  • BP-400HT-A
  • BP-500HT-A
  • BP-600HT-A
  • BP-800HT-A
  • BP-1000HT-A
  • Overview
  • Specifications
  • Dimensions
  • Curves
  • Definitions
  • Parts Diagrams
  • Brochures
  • Japanese Compressors - We choose the most reliable Japanese heat pump compressors for our heat pumps to ensure reliable and quite operation.
  • Auto-defrosting - With auto defrosting function, when the environmental temperature is too lo, our machine will automatically start defrosting function, to ensure the optimal heat pump operations.
  • Self-Diagnosis Function - With our pre-programmed self-diapnosis function, together with our different protection sersors, errors will be detected bymicro-comuter chip, and display corresponding error code on the control panel,  End user can easily determine the root of problem the root of problem and correct procedure can be taken to put machine back to normal operation.

Models Unit BP-400HT-A BP-500HT-A BP-600HT-A BP-800HT-A BP-1000HT-A
Heating Capacity A24/W27 kW 42 51 62 82 102
COP A24/w27 W/W 4.8 4.8 5 5 5
Heating Capacity A15/w27 kW 35 43 51 68 84
COP A15/27W W/W 4.3 4.3 4.3 4.5 4.6
Cooling Capacity   31 39 42 56 67
EER(A32/W27) W/W 3.5 3.5 3.5 3.5 3.5
Power Input kW 8.8 10.9 12.3 17.5 21
Current A 15*3 18*3 22*3 29*3 35*3
Power Supply V/P/Hz 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50
Compressor Qty   2 2 2 3 4
Compressor Style   Scroll Scroll Scroll Scroll Scroll
Compressor Brand   Japanese
Heating Exchanger   Titanium in PVC
Water Connection mm 50 50 50 50 50
Fan quantity   2 2 2 3 3
Fan Rotate Speed RPM 830 830 850 850 850
Fan Direction   Vertical Vertical Vertical Vertical Vertical
Noise dB(A) 64 66 70 72 74
Water Flow Volume m3/h 15 18 21 26 38
Net Unit Size (L/W/H) mm 1450x710x1060 1450x710x1260 1500x900x1500 2150x765x1330 2170x1065x1930
Carton Size (L/W/H) mm 1550x810x1210 1550x810x1410 1630x740x800 2250x900x1500 2250x1380x2180
Net/Gross Weight kg 275/300 300/325 330/360 450/510 890/980
