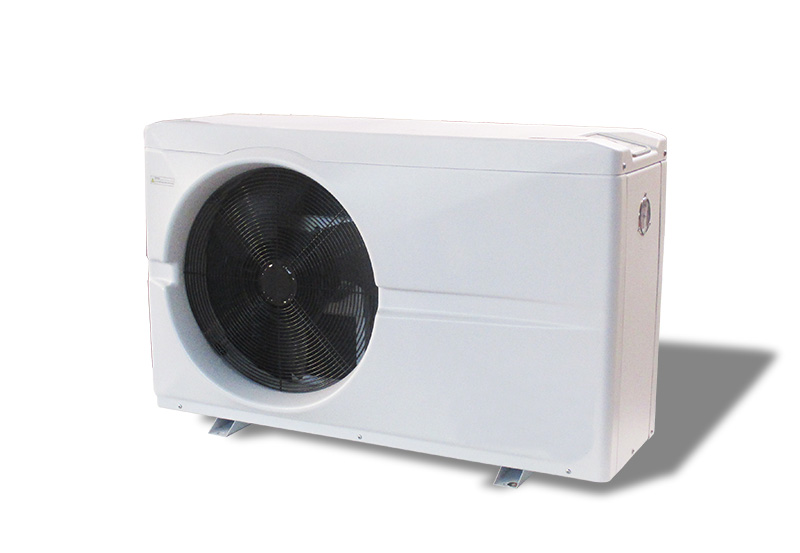

Smart Series

Zoom in
Select Model
  • BP-60HS-AS
  • BP80HS-AS
  • BP-100HS-AS
  • BP-120HS-AS
  • BP-170HS-AS
  • BP-210HS-AS
  • Overview
  • Specifications
  • Dimensions
  • Curves
  • Definitions
  • Parts Diagrams
  • Brochures
  • Control Panel Features - IPX5 grade of water proofing insures control panel won't be affected in the raining day.  And you can read the display data clearly whether it is under the sunshineor at night.
  • Electronic Expansion Valve  - Instead of traditional capillary, Smart Series equipped with the advanced Electronic Expansion Valve which can control the re frigerant flow accurately according to amnbient temperature variation.  It makes the energy efficiency 10%~30% higher.
  • Humanized and Reasonable Design - According to most people's using habit we designed our smart Series to make it more convenient to use in all aspects.  Compared to most of the heat pump in Smart Series is that we move the control panel to the right side of the top frame.  So users do not need to stoop to operate the control panel.
  • Top-Brand Compressor - Smart Series machines equipped the top-brand compressors from U.S. or Japan.  It offers excellent energy efficiency, and operates quietly all the time
Models Unit BP-60HS-A BP-80HS-A BP-100HS-A BP-120HS-A BP-170HS-A BP-210HS-A
Heating Capacity A24/W27 kW 6 8.3 10 12 17 21.5
COP A24/w27 W/W 5.5 5.5 5.5 5.5 5.5 5.5
Heating Capacity A15/w27 kW 4.6 6.7 8.1 9.8 13.8 17.5
COP A15/27W W/W 4.6 4.6 4.6 4.6 4.6 4.6
Cooling Capacity   4.3 5.8 6.9 9.3 11.5 14.5
EER(A32/W27) W/W 3.6 3.6 3.6 3.6 3.6 3.6
Power Input kW 1.1 1.5 1.9 2.2 3.1 3.9
Current A 5.3 7.2 9 10.8 15 7
Power Supply V/P/Hz 220/1/50 220/1/50 220/1/50 220/1/50 220/1/50 380/3/50
Compressor Qty   1 1 1 1 1 1
Compressor Style   Rotary Rotary Rotary Scroll Scroll Scroll
Compressor Brand   Panasonic Panasonic Panasonic Copeland Copeland Copeland
Heating Exchanger   Titanium in PVC
Water Connection mm 50 50 50 50 50 50
Fan quantity   1 1 1 1 1 1
Fan Rotate Speed RPM 850 850 900 900 900 950
Fan Direction   Horizontal Horizontal Horizontal Horizontal Horizontal Horizontal
Noise dB(A) 48 49 50 51 53 54
Water Flow Volume m3/h 4 5 6 7 8.5 10
Net Unit Size (L/W/H) mm 985x360x620 985x360x620 985x360x620 985x360x620 1120x460x890 1120x460x890
Carton Size (L/W/H) mm 1045x455x650 1045x455x650 1045x455x650 1045x455x650 1200x550x940 1200x550x940
Net/Gross Weight kg 54/62 64/72 70/78 78/86 128/138 132/142
