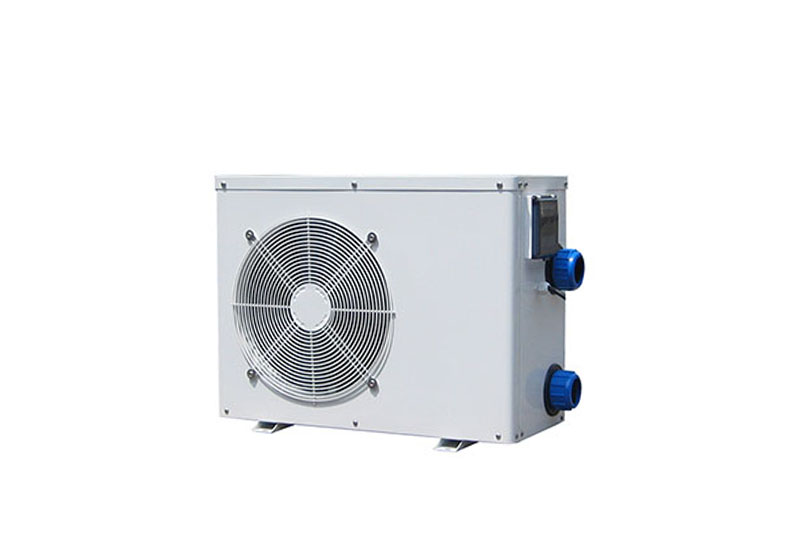

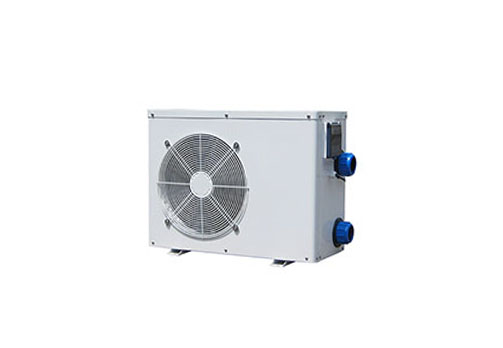

Spring Series

Zoom in
Select Model
  • BP-30WS-B
  • BP-35WS-B
  • BP-50WS-B
  • BP-85WS-B
  • Overview
  • Specifications
  • Dimensions
  • Curves
  • Definitions
  • Parts Diagrams
  • Brochures
  • Titanium Heat Exchanger – With very sturdy design, our heat exchanger can withstand the water pressure coming from water pump.  The advanced titanium heat exchanger can withstand the erosion of chlorine and salt in water, guarantee for long lasting operation time.
  • Water Flow Switch – One of our protection mechanisms.  When there is no water or low water flow through the heat pump, the water flow switch will switch off the heat pump, and show an error message in our control panel.
  • Japanese Compressors - We choose the most reliable Japanese heat pump compressors (Panasonic & Sanyo) for our heat pumps to ensure reliable and quite operation.
  • Digital LCD Control Panel - With this intelligent LCD control panel, you can monitor and operate the heat pump clearly and easily.
Models Unit (kg) BP-30WS-B BP-35WS-B BP-50WS-B BP-85WS-B
Heating Capacity A24/W27 kW 3 3.7 5.4 8.5
COP A24/w27 W/W 5.1 5.3 5.1 5
Heating Capacity A15/w27 kW 2.3 2.8 4.1 6.6
COP A15/27W W/W 4.6 4.6 4.5 4.4
Power Input kW 0.6 0.7 1 1.7
Current A 3 3.6 5 7.8
Power Supply V/P/Hz 220/1/50 220/1/50 220/1/50 220/1/50
Compressor Qty   1 1 1 1
Compressor Style Rotary Rotary Rotary Rotary Rotary
Compressor Brand   Japanese
Heating Exchanger   Titanium in PVC
Water Connection mm 50 50 50 50
Fan quantity   1 1 1 1
Fan Rotate Speed RPM 830 830 830 830
Fan Direction   Horizontal Horizontal Horizontal Horizontal
Noise dB(A) 46 48 49 50
Water Flow Volume m3/h 2.8 3 3.5 5
Net Unit Size (L/W/H) mm 655x270x480 755x270x480 940x270x540 940x270x540
Carton Size (L/W/H) mm 730x340x550 830x340x550 1070x400x575 1070x400x575
Net/Gross Weight kg 30/34 33/37 44/48 53/57
